StingFix series pedestrian gate
The StingFix series gates are made of square-section tubes for the frame and vertical tapered round tubes for the infill. They are similar in appearance to the classic fences still used in elegant settings.
The standard colours are RAL 6005 Green and Anthracite grey mica. They can also be produced with a hot-dip galvanised finish.
StingFix series pedestrian gate with widths of 1.2 - 1.6 - 2.1 metre
• Square-section gate leaf tube 40 x 40 x 2.0 mm
• Square-section upright tube 50 x 50 x 2.0 mm - 80 x 80 x 3.0 mm
• Vertical tapered infill tubes Ø 20 x 1.5 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

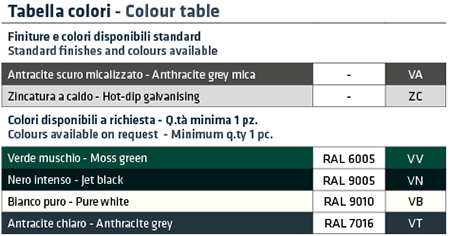

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
