ED A/B/C
Export series double-leaf driveway gate
The gates are also available with 40 x 40 x 4.0 mm mesh. To order the gate with this mesh, add the suffix “44” at the end of the code.
Export series double-leaf driveway gate with widths of 1.9 - 2.8 - 3.6 metre
• Round tube gate leaf Ø 42 x 2.5 mm- cut at 45°
• Upright tube Ø 48 x 2.5 mm - 60 x 3.0 mm - 76 x 3.0 mm
• Mesh infill 50 x 50 mm - Undulated wire Ø 5 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• Supplied with gatekeeper socket and relevant drop bolt
• The gate is supplied with a black plastic handle
• The standard distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

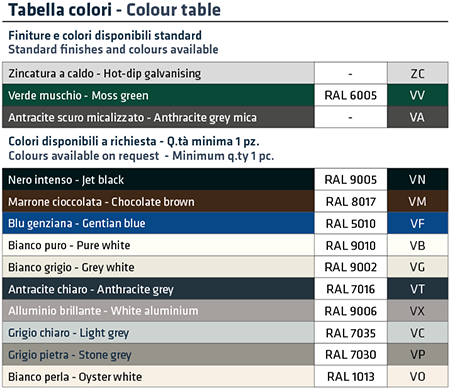

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 1.9 metre width. Opening clearance 1,720-1,760 mm - Overall dimensions external upright-upright 1,936-1,976 mm - Upright Ø 48 mm | ||||
| ED A 100 xx (KY) | 1000 | 845 x 900 | 1300 | 37.90 |
| ED A 125 xx (KY) | 1250 | 845 x 1.150 | 1600 | 44.10 |
| ED A 150 xx (KY) | 1500 | 845 x 1.400 | 1900 | 51.20 |
| ED A 175 xx (KY) | 1750 | 845 x 1.650 | 2200 | 58.30 |
| ED A 200 xx (KY) | 2000 | 845 x 1.900 | 2500 | 63.40 |
| Series with 2.8 metre width. Opening clearance 2,520-2,560 mm - Overall dimensions external upright-upright 2,760-2,800 mm - Upright Ø 60 mm | ||||
| ED B 100 xx (KY) | 1000 | 1.245 x 900 | 1300 | 44.00 |
| ED B 125 xx (KY) | 1250 | 1.245 x 1.150 | 1600 | 53.60 |
| ED B 150 xx (KY) | 1500 | 1.245 x 1.400 | 1900 | 61.60 |
| ED B 175 xx (KY) | 1750 | 1.245 x 1.650 | 2200 | 70.20 |
| ED B 200 xx (KY) | 2000 | 1.245 x 1.900 | 2500 | 78.40 |
| Series with 3.6 metre width. Opening clearance 3,320-3,360 mm - Overall dimensions external upright-upright 3,592-3,632 mm - Upright Ø 76 mm | ||||
| ED C 100 xx (KY) | 1000 | 1.645 x 900 | 1400 | 64.30 |
| ED C 125 xx (KY) | 1250 | 1.645 x 1.150 | 1700 | 72.80 |
| ED C 150 xx (KY) | 1500 | 1.645 x 1.400 | 2000 | 84.40 |
| ED C 175 xx (KY) | 1750 | 1.645 x 1.650 | 2300 | 96.60 |
| ED C 200 xx (KY) | 2000 | 1.645 x 1.900 | 2500 | 107.40 |
