GD A/B/C
GrigliaFix series double-leaf driveway gate
Description:
GrigliaFix series double-leaf driveway gate with widths of 2,0 - 3,0 - 4,4 metre
• Gate leaf tube 50 x 50 x 2.0 mm - cut at 45°
• Square-section upright tube 50 x 50 x 2.0 mm - 80 x 80 x 2.0 mm
• Mesh infill 62 x 132 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• Supplied with gatekeeper socket and relevant drop bolt
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

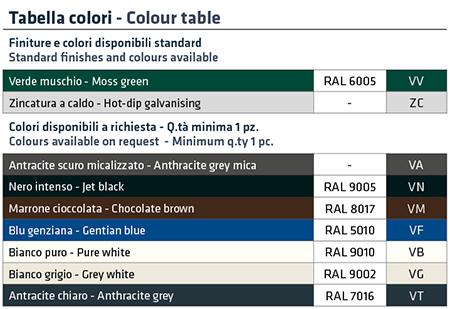

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 2.0 metre width. Opening clearance 1,746-1,786 mm - Overall dimensions external upright-upright 1,966-2,006 mm - Upright 50 x 50 x 2.0 mm | ||||
| GD A100 xx (KY) | 1000 | 868 x 900 | 1400 | 51.20 |
| GD A120 xx (KY) | 1200 | 868 x 1.100 | 1600 | 56.80 |
| GD A130 xx (KY) | 1300 | 868 x 1.200 | 1700 | 60.80 |
| GD A140 xx (KY) | 1400 | 868 x 1.300 | 1800 | 64.00 |
| GD A160 xx (KY) | 1600 | 868 x 1.500 | 2000 | 70.60 |
| GD A180 xx (KY) | 1800 | 868 x 1.700 | 2300 | 78.00 |
| GD A200 xx (KY) | 2000 | 868 x 1.900 | 2500 | 85.40 |
| Series with 3.0 metre width. Opening clearance 2,738-2,778 mm - Overall dimensions external upright-upright 3,018-3,058 mm - Upright 80 x 80 x 2.0 mm | ||||
| GD B100 xx (KY) | 1000 | 1.364 x 900 | 1400 | 72.40 |
| GD B120 xx (KY) | 1200 | 1.364 x 1.100 | 1700 | 83.50 |
| GD B130 xx (KY) | 1300 | 1.364 x 1.200 | 1800 | 88.60 |
| GD B140 xx (KY) | 1400 | 1.364 x 1.300 | 1900 | 93.00 |
| GD B160 xx (KY) | 1600 | 1.364 x 1.500 | 2100 | 103.00 |
| GD B180 xx (KY) | 1800 | 1.364 x 1.700 | 2300 | 112.20 |
| GD B200 xx (KY) | 2000 | 1.364 x 1.900 | 2500 | 123.40 |
| Series with 4.4 metre width. Opening clearance 4,094-4,134 mm - Overall dimensions external upright-upright 4,374-4,414 mm - Upright 80 x 80 x 2.0 mm | ||||
| GD C100 xx (KY) | 1000 | 2.092 x 900 | 1500 | 88.00 |
| GD C120 xx (KY) | 1200 | 2.092 x 1.100 | 1700 | 99.60 |
| GD C130 xx (KY) | 1300 | 2.092 x 1.200 | 1900 | 107.20 |
| GD C140 xx (KY) | 1400 | 2.092 x 1.300 | 2000 | 127.40 |
| GD C160 xx (KY) | 1600 | 2.092 x 1.500 | 2300 | 132.20 |
| GD C180 xx (KY) | 1800 | 2.092 x 1.700 | 2400 | 136.40 |
| GD C200 xx (KY) | 2000 | 2.092 x 1.900 | 2600 | 149.50 |
