LFD A/B/C
FullFix series double-leaf driveway gate
Description:
FullFix series double-leaf driveway gate with widths of 2.3 - 3.4 - 4.4 metre
• L-shaped gate leaf tube 38 x 25 x 1.5 mm - cut at 45°
• Square-section upright tube 40 x 40 x 2.0 mm - 80 x 80 x 2.0 mm
• Expanded and stamped sheet metal infill, thickness 1.5 mm
• Indicate RH or LH opening in the order
• Adjustable hinges +/- 30 mm
• Supplied with black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Supplied with gatekeeper socket and relevant drop bolt
• Epoxy powder coating on the base

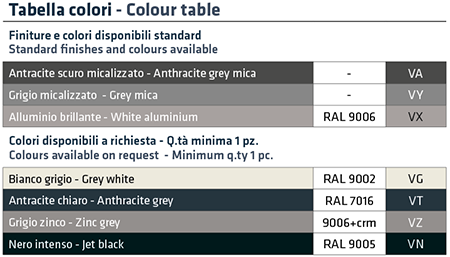

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 2.3 metre width. Opening clearance 2,060-2,100 mm - Overall size external upright-upright 2,260-2,300 mm. Upright 40 x 40 x 2.0 mm | ||||
| LFD A120 xx (KY) | 1200 | 1.025 x 1.100 | 1600 | 47.60 |
| LFD A170 xx (KY) | 1700 | 1.025 x 1.600 | 2200 | 59.20 |
| Series with 3.4 metre width. Opening clearance 3,090-3,130 mm - Overall size external upright-upright 3,370-3,410 mm. Upright 80 x 80 x 2.0 mm | ||||
| LFD B120 xx (KY) | 1200 | 1.540 x 1.100 | 1700 | 91.00 |
| LFD B170 xx (KY) | 1700 | 1.540 x 1.600 | 2200 | 135.80 |
| Series with 4.4 metre width. Opening clearance 4,110-4,150 mm - Overall size external upright-upright 4,390-4,430 mm. Upright 80 x 80 x 2.0 mm | ||||
| LFD C120 xx (KY) | 1200 | 2.050 x 1.100 | 1800 | 108.00 |
| LFD C170 xx (KY) | 1700 | 2.050 x 1.600 | 2300 | 149.50 |
