StiroFix series double-leaf driveway gate
Description:
StiroFix series double-leaf driveway gate with widths of 2.3 - 3.4 - 4.4 metre
• L-shaped gate leaf tube 25 x 28 x 1.5 mm - cut at 45°
• Square-section upright tube 40 x 40 x 2.0 mm - 80 x 80 x 2.0 mm
• Diamond pattern expanded shee metal infill 110 x 40 x 1.5 mm
• Indicate RH or LH opening in the order
• Adjustable hinges +/- 30 mm
• Supplied with black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Supplied with gatekeeper socket and relevant drop bolt
• Epoxy powder coating on the base

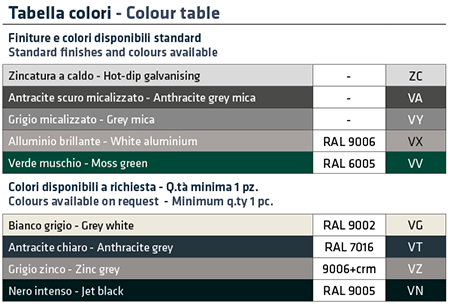

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 2.3 metre width. Opening clearance 2,060-2,110 mm - Overall size external upright-upright 2,260-2,300 mm. Upright 40 x 40 x 2.0 mm | ||||
| LPD A120 xx (KY) | 1200 | 1.025 x 1.100 | 1600 | 49.20 |
| LPD A170 xx (KY) | 1700 | 1.025 x 1.600 | 2200 | 60.40 |
| Series with 3.5 metre width. Opening clearance 3,090-3,130 mm - Overall size external upright-upright 3,370-3,410 mm. Upright 80 x 80 x 2.0 mm | ||||
| LPD B120 xx (KY) | 1200 | 1.540 x 1.100 | 1700 | 71.00 |
| LPD B170 xx (KY) | 1700 | 1.540 x 1.600 | 2200 | 103.60 |
| Series with 4.5 metre width. Opening clearance 4,110-4,150 mm - Overall size external upright-upright 4,390-4,430 mm. Upright 80 x 80 x 2.0 mm | ||||
| LPD C120 xx (KY) | 1200 | 2.050 x 1.100 | 1800 | 104.20 |
| LPD C170 xx (KY) | 1700 | 2.050 x 1.600 | 2300 | 125.60 |
