RebarFix series double-leaf driveway gate
Description:
RebarFix series double-leaf driveway gate with widths of 2.2 - 2.9 - 4.3 metre
• Gate leaf tube 50 x 50 x 2.0 mm
• Square-section upright tube 50 x 50 x 2.0 mm - 80 x 80 x 2.0 mm
• Vertical round infill bars Ø 12 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• Supplied with gatekeeper socket and relevant drop bolt
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

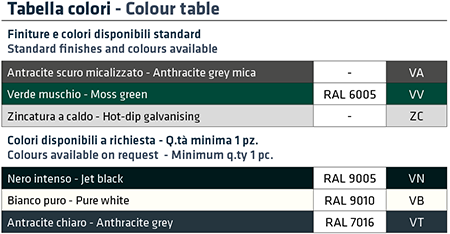

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 2.2 metre width. Opening clearance 2,010-2,050 mm - Overall dimensions external upright-upright 2,230-2,270 mm - Upright 50 x 50 x 2.0 mm | ||||
| RD A110 xx (KY) | 1100 | 1.000 x 1.000 | 1500 | 48.10 |
| RD A170 xx (KY) | 1700 | 1.000 x 1.600 | 2100 | 76.00 |
| RD A200 xx (KY) | 2000 | 1.000 x 1.900 | 2500 | 83.50 |
| Series with 2.9 metre width. Opening clearance 2,610-2,650 mm - Overall dimensions external upright-upright 2,890-2,930 mm - Upright 80 x 80 x 2.0 mm | ||||
| RD B110 xx (KY) | 1100 | 1.300 x 1.000 | 1500 | 51.40 |
| RD B170 xx (KY) | 1700 | 1.300 x 1.600 | 2100 | 81.00 |
| RD B200 xx (KY) | 2000 | 1.300 x 1.900 | 2500 | 88.50 |
| Series with 4.3 metre width. Opening clearance 4,050-4,090 mm - Overall dimensions external upright-upright 4,330-4,370 mm - Upright 80 x 80 x 2.0 mm | ||||
| RD C110 xx (KY) | 1100 | 2.020 x 1.000 | 1600 | 73.00 |
| RD C170 xx (KY) | 1700 | 2.020 x 1.600 | 2200 | 106.20 |
| RD C200 xx (KY) | 2000 | 2.020 x 1.900 | 2600 | 126.80 |
