Catalogs | Fences | Grid panels and perforated and expanded sheet metal fences | GrigliaFix industrial grid panel fences | Hot-dip galvanised or painted flat uprights to be set in concrete
GPC

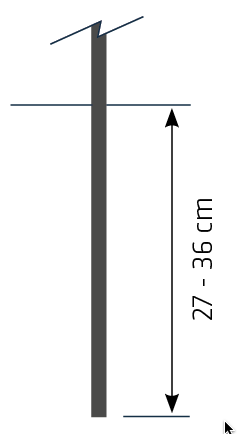

Hot-dip galvanised or painted flat uprights to be set in concrete
Description:
Hot-dip galvanised or painted flat uprights to be set in concrete
• Flat bar 60 x 7 mm
• Packs of 25 pieces
Available models
| Item | Upright H mm | Panel H mm | Kg x piece | kg per pallet |
|---|---|---|---|---|
| GPC 120 xx | 1200 | 930 | 4.20 | 105 |
| GPC 146 xx | 1465 | 1195 | 5.20 | 130 |
| GPC 165 xx | 1650 | 1320 | 5.60 | 140 |
| GPC 179 xx | 1790 | 1460 | 6.10 | 153 |
| GPC 209 xx | 2085 | 1720 | 7.00 | 175 |
| GPC 235 xx | 2350 | 1985 | 8.10 | 203 |
| Specific uprights for GV series | ||||
| GPC 113 xx | 1130 | 875 | 4.10 | 103 |
| GPC 163 xx | 1625 | 1375 | 5.80 | 145 |
| GPC 214 xx | 2135 | 1870 | 7.60 | 190 |
