Catalogs | Fences | Grid panels and perforated and expanded sheet metal fences | GrigliaFix industrial grid panel fences

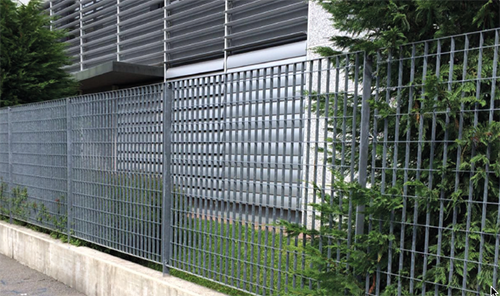

GrigliaFix is the most widespread range of panel fences for enclosing production and artisan sites. Its grid structure, consisting of heavy gauge wire and suitably sized flat bars, makes it a classic fence. It is normally supplied with a hot-dip galvanised finish which makes it extremely durable. All the colours in the RAL table can be applied to the basic galvanised product. The standard length is about 2 metre and the heights range from about 88 to 200 centimetres. The support posts must be set in concrete or bolted on.

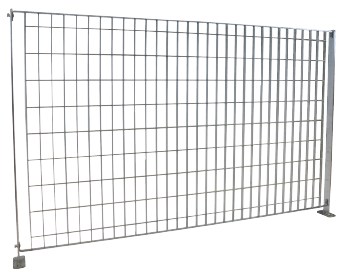

The grid panels are made of 25 x 2 mm vertical flat metal bars and horizontal wire with a 5 mm gauge, in different heights and types of square and rectangular mesh of varying sizes. The horizontal frames, made of 25 x 4 mm flat bars, are bent and drilled at the ends to hook onto the uprights.
In addition to the standard models, special panels, curved panels or with specific assembly solutions can be created, on request.

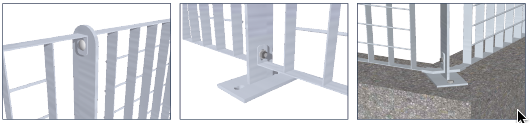

To assemble the fence, start by positioning the uprights, either ones with a drilled base for bolts or “extended” ones to be set in concrete. These are available in different heights based on the size of the panels used for the fence.
The panels are then fixed to the uprights on two sides with two round-headed bolts and an anti-theft nut (Ø 8 mm).
The uprights should be placed 2 metre apart whether they have a base to bolt to a wall or an extension to set in concrete.

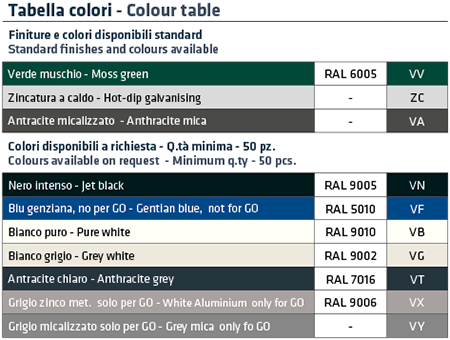

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.

Some colours are not available for the GO series and others are only for this series. Please refer to the colour description in the table.
