Catalogs | Fences | Fences in spot-welded and chain link rolls | Not compacted chain link rolls | Non compacted chain link with pre-galvanised and plastic-coated wire
RSP Y - L/LM - 33
Non compacted chain link with pre-galvanised and plastic-coated wire
Description:
Non compacted chain link with pre-galvanised and plastic-coated wire
• Wire Ø int. 1.50 ext. 2.80 mm
• Diamond pattern mesh 30 x 30 mm

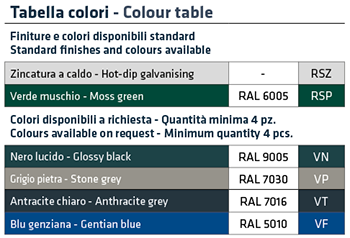

• RAL 6005 Green
Available models
| Item | Height cm | Roll Kg | Rolls per pallet | kg per pallet |
|---|---|---|---|---|
| Wire Ø int.-ext. 1,50-2,80 mm - Weight for m2 1,68 kg - 25 metre rolls | ||||
| RSP Y 080 L-33 | 80 | 33.60 | 8 | 269 |
| RSP Y 090 L-33 | 90 | 37.80 | 8 | 302 |
| RSP Y 100 L-33 | 100 | 42.00 | 8 | 336 |
| RSP Y 120 L-33 | 120 | 50.40 | 8 | 403 |
| RSP Y 125 L-33 | 125 | 52.50 | 8 | 420 |
| RSP Y 150 L-33 | 150 | 63.00 | 8 | 504 |
| RSP Y 175 L-33 | 175 | 73.50 | 8 | 588 |
| RSP Y 180 L-33 | 180 | 75.60 | 8 | 605 |
| RSP Y 200 L-33 | 200 | 84.00 | 8 | 672 |
| Wire Ø int.-ext. 1,50-2,80 mm - Weight for m2 1,68 kg - 12,5 metre rolls | ||||
| RSP Y 080 LM-33 | 80 | 16.80 | 12 | 202 |
| RSP Y 090 LM-33 | 90 | 18.90 | 12 | 227 |
| RSP Y 100 LM-33 | 100 | 21.00 | 12 | 252 |
| RSP Y 120 LM-33 | 120 | 25.20 | 12 | 302 |
| RSP Y 125 LM-33 | 125 | 26.25 | 12 | 315 |
| RSP Y 150 LM-33 | 150 | 31.50 | 12 | 378 |
| RSP Y 175 LM-33 | 175 | 36.75 | 12 | 441 |
| RSP Y 180 LM-33 | 180 | 37.80 | 12 | 454 |
| RSP Y 200 LM-33 | 200 | 42.00 | 12 | 504 |
