ES A/B/C/D/E
Export series pedestrian gate
The Export series gates feature the frame and uprights in round tubes with a large section and thickness which makes them extra strong. The infill is made of square undulated wire mesh. There are two finishes available: hot-dip galvanising or epoxy powder coating.
Export series pedestrian gate with widths of 1.0 - 1.2 - 1.4 - 1.7 - 1.9 metre
• Round tube gate leaf Ø 42 x 2.5 mm- cut at 45°
• Upright tube 48 x 2.5 mm - 60 x 3.0 mm - 76 x 3.0 mm
• Mesh 50 x 50 mm - Undulated wire Ø 5 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base
The gates are also available with 40 x 40 x 4.0 mm mesh. To order the gate with this mesh, add the suffix “44” at the end of the code

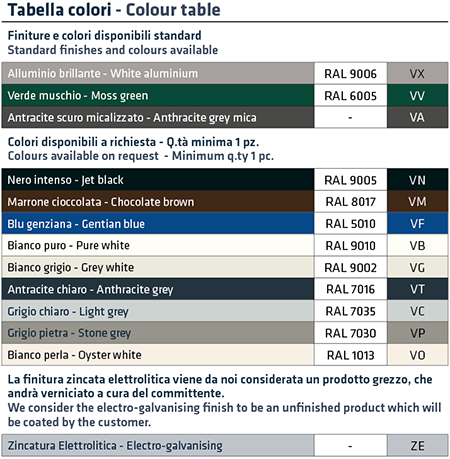

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Serie larghezza 1,0 metri. Luce passaggio 870-910 mm - Ingombro totale esterno piantana-piantana 1.026-1.066 mm - Piantana Ø 48 mm | ||||
| Series with 1.0 metre width. Opening clearance 870-910 mm - Overall dimensions external upright-upright 1,026-1,066 mm - Upright Ø 48 mm | ||||
| ES A 100 xx (KY) | 1000 | 845 x 900 | 1300 | 22.10 |
| ES A 125 xx (KY) | 1250 | 845 x 1.150 | 1600 | 26.00 |
| ES A 150 xx (KY) | 1500 | 845 x 1.400 | 1900 | 30.40 |
| ES A 175 xx (KY) | 1750 | 845 x 1.650 | 2200 | 34.70 |
| ES A 200 xx (KY) | 2000 | 845 x 1.900 | 2500 | 38.20 |
| Serie larghezza 1,2 metri. Luce passaggio 1.070 - 1.110 mm - Ingombro totale esterno piantana-piantana 1.226-1.266 mm - Piantana Ø 48 mm | ||||
| Series with 1.2 metre width. Opening clearance 1,070- 1,110 mm - Overall dimensions external upright-upright 1,226-1,266 mm - Upright Ø 48 mm | ||||
| ES B 100 xx (KY) | 1000 | 1.045 x 900 | 1300 | 24.10 |
| ES B 125 xx (KY) | 1250 | 1.045 x 1.150 | 1600 | 28.50 |
| ES B 150 xx (KY) | 1500 | 1.045 x 1.400 | 1900 | 32.80 |
| ES B 175 xx (KY) | 1750 | 1.045 x 1.650 | 2200 | 37.60 |
| ES B 200 xx (KY) | 2000 | 1.045 x 1.900 | 2500 | 41.70 |
| Serie larghezza 1,4 metri. Luce passaggio 1.270-1.310 mm - Ingombro totale esterno piantana-piantana 1.426-1.466 mm - Piantana Ø 48 mm | ||||
| Series with 1.4 metre width. Opening clearance 1,270-1,310 mm - Overall dimensions external upright-upright 1,426-1,466 mm - Upright Ø 48 mm | ||||
| ES C 100 xx (KY) | 1000 | 1.245 x 900 | 1300 | 26.00 |
| ES C 125 xx (KY) | 1250 | 1.245 x 1.150 | 1600 | 30.80 |
| ES C 150 xx (KY) | 1500 | 1.245 x 1.400 | 1900 | 35.60 |
| ES C 175 xx (KY) | 1750 | 1.245 x 1.650 | 2200 | 40.80 |
| ES C 200 xx (KY) | 2000 | 1.245 x 1.900 | 2500 | 45.70 |
| Serie larghezza 1,7 metri. Luce passaggio 1.470-1.510 mm - Ingombro totale esterno piantana-piantana 1.650-1.690 mm - Piantana Ø 60 mm | ||||
| Series with 1.7 metre width. Opening clearance 1,470-1,510 mm - Overall dimensions external upright-upright 1,650-1,690 mm - Upright Ø 60 mm | ||||
| ES D 100 xx (KY) | 1000 | 1.445 x 900 | 1400 | 32.30 |
| ES D 125 xx (KY) | 1250 | 1.445 x 1.150 | 1700 | 38.10 |
| ES D 150 xx (KY) | 1500 | 1.445 x 1.400 | 1950 | 43.50 |
| ES D 175 xx (KY) | 1750 | 1.445 x 1.650 | 2300 | 50.50 |
| ES D 200 xx (KY) | 2000 | 1.445 x 1.900 | 2500 | 55.00 |
| Serie larghezza 1,9 metri. Luce passaggio 1.670-1.710 mm - Ingombro totale esterno piantana-piantana 1.882-1.922 mm - Piantana Ø 76 mm | ||||
| Series with 1.9 metre width. Opening clearance 1,670-1,710 mm - Overall dimensions external upright-upright 1,882-1,922 mm - Upright Ø 76 mm | ||||
| ES E 100 xx (KY) | 1000 | 1.645 x 900 | 1400 | 39.60 |
| ES E 125 xx (KY) | 1250 | 1.645 x 1.150 | 1700 | 46.20 |
| ES E 150 xx (KY) | 1500 | 1.645 x 1.400 | 2000 | 53.00 |
| ES E 175 xx (KY) | 1750 | 1.645 x 1.650 | 2300 | 60.70 |
| ES E 200 xx (KY) | 2000 | 1.645 x 1.900 | 2500 | 67.20 |
