GS A/B/C
GrigliaFix pedestrian gate
The GrigliaFix series gates are made of square-section tubes. The GR series grid is used for the infill (see page 3.142). On request, the other grids in chapter 3 can be used at a small surcharge. The standard finishes are hot-dip galvanising and RAL 6005 Green.
GrigliaFix pedestrian gate with widths of 1.1 - 1.5 - 2.1 metre
• Square-section gate leaf tube 50 x 50 x 2.0 mm- cut at 45°
• Square-section upright 50 x 50 x 2.0 mm - 80 x 80 x 2.0 mm
• Mesh infill dimensions 62 x 132 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

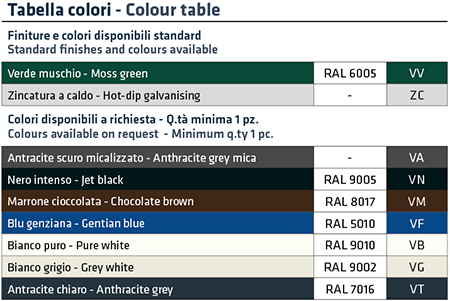

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 1.1 metre width. Opening clearance 936-976 mm - Overall dimensions external upright-upright 1,096-1,136 mm - Upright 50 x 50 x 2.0 mm | ||||
| GS A100 xx (KY) | 1000 | 944 x 900 | 1400 | 28.80 |
| GS A120 xx (KY) | 1200 | 944 x 1.100 | 1600 | 32.40 |
| GS A130 xx (KY) | 1300 | 944 x 1.200 | 1700 | 34.70 |
| GS A140 xx (KY) | 1400 | 944 x 1.300 | 1800 | 36.60 |
| GS A160 xx (KY) | 1600 | 944 x 1.500 | 2000 | 40.50 |
| GS A180 xx (KY) | 1800 | 944 x 1.700 | 2300 | 45.10 |
| GS A200 xx (KY) | 2000 | 944 x 1.900 | 2500 | 49.40 |
| Series with 1.5 metre width. Opening clearance 1,308-1,348 mm - Overall dimensions external upright-upright 1,468-1,508 mm - Upright 50 x 50 x 2.0 mm | ||||
| GS B100 xx (KY) | 1000 | 1.316 x 900 | 1400 | 33.50 |
| GS B120 xx (KY) | 1200 | 1.316 x 1.100 | 1700 | 38.70 |
| GS B130 xx (KY) | 1300 | 1.316 x 1.200 | 1800 | 41.20 |
| GS B140 xx (KY) | 1400 | 1.316 x 1.300 | 1900 | 43.20 |
| GS B160 xx (KY) | 1600 | 1.316 x 1.500 | 2100 | 48.10 |
| GS B180 xx (KY) | 1800 | 1.316 x 1.700 | 2300 | 52.60 |
| GS B200 xx (KY) | 2000 | 1.316 x 1.900 | 2500 | 57.40 |
| Series with 2.1 metre width. Opening clearance 1,866-1,906 mm - Overall dimensions external upright-upright 2,086-2,126 mm - Upright 80 x 80 x 2.0 mm | ||||
| GS C100 xx (KY) | 1000 | 1.874 x 900 | 1500 | 54.80 |
| GS C120 xx (KY) | 1200 | 1.874 x 1.100 | 1700 | 61.80 |
| GS C130 xx (KY) | 1300 | 1.874 x 1.200 | 1900 | 67.00 |
| GS C140 xx (KY) | 1400 | 1.874 x 1.300 | 2000 | 70.50 |
| GS C160 xx (KY) | 1600 | 1.874 x 1.500 | 2300 | 79.50 |
| GS C180 xx (KY) | 1800 | 1.874 x 1.700 | 2400 | 85.00 |
| GS C200 xx (KY) | 2000 | 1.874 x 1.900 | 2600 | 93.00 |
