RebarFix series pedestrian gate
The RebarFix series gates are made of square-section tubes for the frame and vertical round bars supported by two or three pairs of flat horizontal rails for the infill. This is a gate with a lightweight appearance that is, however, very sturdy. The standard colours are anthracite grey mica, RAL 6005 green or hot-dip galvanised finish.
RebarFix series pedestrian gate with widths of 1.2 - 1.5 - 2.2 metre
• Square-section gate leaf tube 50 x 50 x 2.0 mm
• Square-section upright tube 50 x 50 x 2.0 mm - 80 x 80 x 2.0 mm
• Vertical round infill bars Ø 12 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

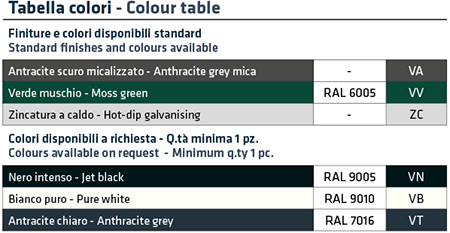

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 1.2 metre width. Opening clearance 992-1,032 mm - Overall dimensions external upright-upright 1,152-1,192 mm - Upright 50 x 50 x 2.0 mm | ||||
| RS A110 xx (KY) | 1100 | 1.000 x 1.000 | 1500 | 28.20 |
| RS A170 xx (KY) | 1700 | 1.000 x 1.600 | 2100 | 44.00 |
| RS A200 xx (KY) | 2000 | 1.000 x 1.900 | 2500 | 48.80 |
| Series with 1.5 metre width. Opening clearance 1,292-1,332 mm - Overall dimensions external upright-upright 1,512-1,552 mm - Upright 80 x 80 x 2.0 mm | ||||
| RS B110 xx (KY) | 1100 | 1.300 x 1.000 | 1500 | 36.30 |
| RS B170 xx (KY) | 1700 | 1.300 x1.600 | 2100 | 55.50 |
| RS B200 xx (KY) | 2000 | 1.300 x 1.900 | 2500 | 61.80 |
| Series with 2.2 metre width. Opening clearance 2,012-2,052 mm - Overall dimensions external upright-upright 2,232-2,272 mm - Upright 80 x 80 x 2.0 mm | ||||
| RS C110 xx (KY) | 1100 | 2.020 x 1.000 | 1600 | 47.40 |
| RS C170 xx (KY) | 1700 | 2.020 x 1.600 | 2200 | 69.00 |
| RS C200 xx (KY) | 2000 | 2.020 x 1.900 | 2600 | 82.00 |
