TubeFix pedestrian gate
The TubeFix series gates are made of square-section tubes for the frame and vertical round tubes for the infill. This is a simple, but elegant solution.
The standard colours are RAL 6005 Green and Anthracite grey mica. It is also possible to purchase it with a hot-dip galvanised finish.
TubeFix pedestrian gate with widths of 1.2 - 1.6 - 2.1 metre
• Square-section gate leaf tube 40 x 40 x 2.0 mm- cut at 45°
• Square-section upright tube 50 x 50 x 2.0 mm - 80 x 80 x 2.0 mm
• Infill in vertical tubes Ø 20 x 1.5 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

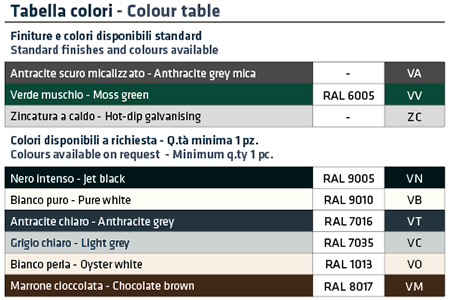

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 1.2 metre width. Opening clearance 992-1,032 mm - Overall dimensions external upright-upright 1,152-1,192 mm - Upright 50 x 50 x 2.0 mm | ||||
| TS A105 xx (KY) | 1050 | 1.000 x 950 | 1400 | 22.20 |
| TS A115 xx (KY) | 1150 | 1.000 x 1.050 | 1500 | 24.60 |
| TS A125 xx (KY) | 1250 | 1.000 x 1.150 | 1600 | 25.80 |
| TS A135 xx (KY) | 1350 | 1.000 x 1.250 | 1750 | 26.80 |
| TS A155 xx (KY) | 1550 | 1.000 x 1.450 | 2000 | 30.20 |
| Series with 1.6 metre width. Opening clearance 1,452-1,492 mm - Overall dimensions external upright-upright 1,612-1,652 mm - Upright 50 x 50 x 2.0 mm | ||||
| TS B105 xx (KY) | 1050 | 1.460 x 950 | 1500 | 27.50 |
| TS B115 xx (KY) | 1150 | 1.460 x 1.050 | 1600 | 29.00 |
| TS B125 xx (KY) | 1250 | 1.460 x 1.150 | 1700 | 31.20 |
| TS B135 xx (KY) | 1350 | 1.460 x 1.250 | 1800 | 32.60 |
| TS B155 xx (KY) | 1550 | 1.460 x 1.450 | 2000 | 36.40 |
| Series with 2.1 metre width. Opening clearance 1,912-1,952 mm - Overall dimensions external upright-upright 2,132-2,172 mm - Upright 80 x 80 x 2.0 mm | ||||
| TS C105 xx (KY) | 1050 | 1.920 x 950 | 1500 | 32.00 |
| TS C115 xx (KY) | 1150 | 1.920 x 1.050 | 1600 | 33.80 |
| TS C125 xx (KY) | 1250 | 1.920 x 1.150 | 1700 | 34.80 |
| TS C135 xx (KY) | 1350 | 1.920 x 1.250 | 1800 | 35.50 |
| TS C155 xx (KY) | 1550 | 1.920 x 1.450 | 2000 | 40.00 |
