Losanga series pedestrian gate
The gates in the Losanga series are a valid alternative to the Export series, especially when the fence is made of chain links. They are made of round tubes and the infill is in vertical diamond pattern expanded sheet metal. These gates, although they give the impression of lightness, are, in fact, very sturdy due to the size of the metal ribs. A horizontal mid section rail is required for heights over 1.2 metre.
Losanga series pedestrian gate with widths of 1.3 - 1.8 - 2.3 metre
• Round tube gate leaf Ø 42 x 2.5 mm- cut at 45°
• Mid section tube 33 x 2.0 mm for H over 1,200 mm
• Upright tube 48 x 2.5 mm - 60 x 3.0 mm
• Diamond pattern expanded sheet metal infill 110 x 40 x 3.0 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

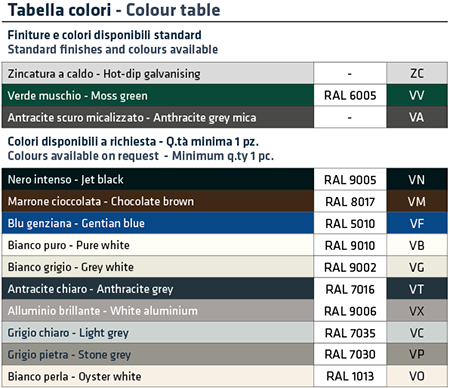

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height above ground mm | Leaf size B x H mm | Upright H tot. Mm | kg total |
|---|---|---|---|---|
| Series with 1.3 metre width. Opening clearance 1,109-1,149 mm - Overall dimensions external upright-upright 1,265-1,305 mm - Upright Ø 48mm | ||||
| YS A 100 xx (KY) | 1000 | 1.084 x 900 | 1300 | 18.80 |
| YS A 120 xx (KY) | 1200 | 1.084 x 1.100 | 1600 | 23.00 |
| YS A 150 xx (KY) | 1500 | 1.084 x 1.400 | 1900 | 27.80 |
| YS A 175 xx (KY) | 1750 | 1.084 x 1.650 | 2200 | 31.30 |
| YS A 200 xx (KY) | 2000 | 1.084 x 1.900 | 2500 | 35.20 |
| Series with 1.8 metre width. Opening clearance 1,609-1,649 mm - Overall dimensions external upright-upright 1,789-1,829 mm - Upright Ø 60 mm | ||||
| YS B 100 xx (KY) | 1000 | 1.584 x 900 | 1500 | 29.80 |
| YS B 120 xx (KY) | 1200 | 1.584 x 1.100 | 1700 | 31.50 |
| YS B 150 xx (KY) | 1500 | 1.584 x 1.400 | 1950 | 37.00 |
| YS B 175 xx (KY) | 1750 | 1.584 x 1.650 | 2300 | 42.70 |
| YS B 200 xx (KY) | 2000 | 1.584 x 1.900 | 2500 | 46.50 |
| Series with 2.3 metre width. Opening clearance 2,109-2,149 mm - Overall dimensions external upright-upright 2,289-2,329 mm - Upright Ø 60 mm | ||||
| YS C 100 xx (KY) | 1000 | 2.084 x 900 | 1500 | 39.70 |
| YS C 120 xx (KY) | 1200 | 2.084 x 1.100 | 1700 | 45.90 |
| YS C 150 xx (KY) | 1500 | 2.084 x 1.400 | 2000 | 54.00 |
| YS C 175 xx (KY) | 1750 | 2.084 x 1.650 | 2300 | 63.40 |
| YS C 200 xx (KY) | 2000 | 2.084 x 1.900 | 2500 | 69.50 |
