Reinforcement continuity systems INFO
Pallett

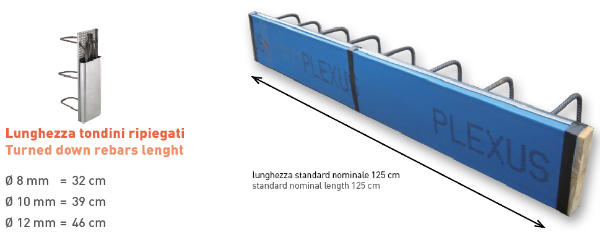

The boxes are made of knurled sheeting or plastic. The steel used for the brackets is BST 500/550 quality, in compliance with European regulations. All elements have a standard nominal length of 125 cm.

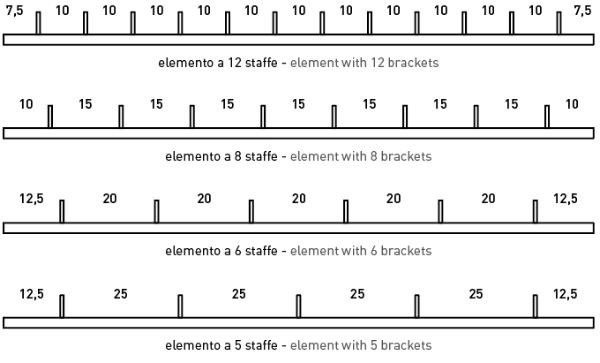

Range and number of anchor brackets in the reinforcement continuity system
This table shows the spacing and number of brackets. The sizes are in centimetres.

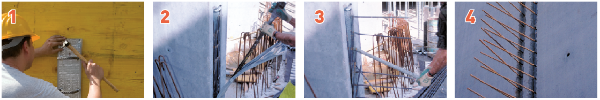

Notes on installation of reinforcement continuity systems
1 - Before pouring
Fix the casting scaffold box inside the formwork with nails to lock it into place properly during casting.
2 - After pouring
Straighten it, tucking the bars upwards to avoid hitting the brackets. After the bars have been straightened, the scaffolding is ready for use.
3
Do not straighten below temperatures of -15°C. Repeated folding is prohibited.
4
Wall ready to be connected to casting scaffolding. The box remains in the concrete.
International certifications
