RNC/P/T RingFix
RingFix PVC fence
Description:
RingFix PVC fence

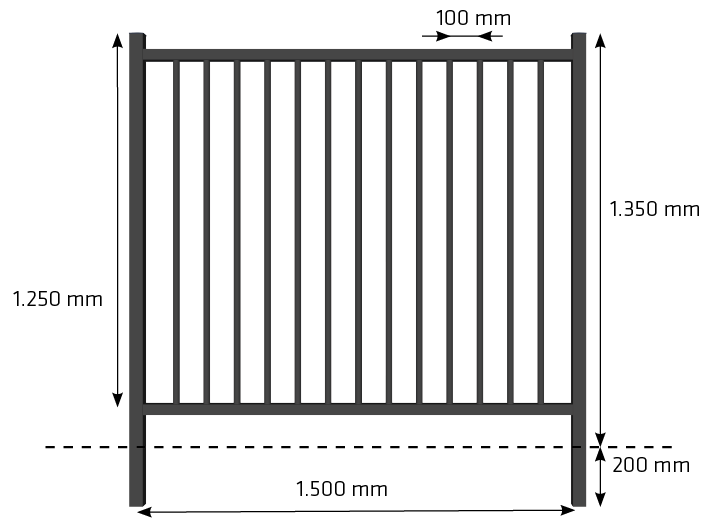

• Standard width 1,500 mm
• Distance between vertical pickets 100 mm
• PVC rail 35 x 45 x 2.0 mm

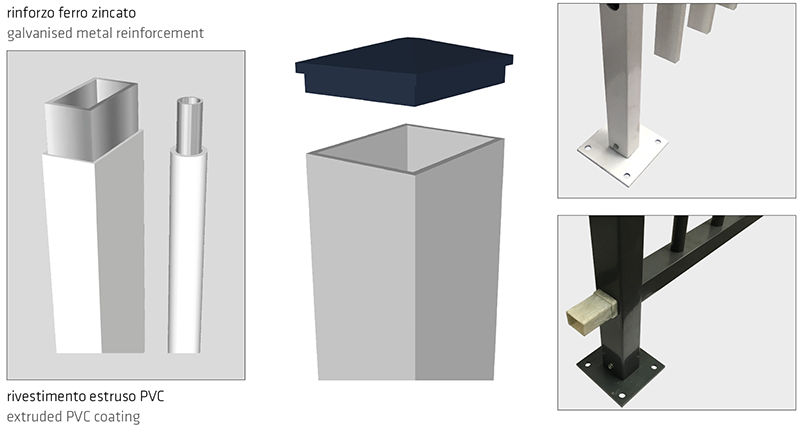

• Galvanised steel reinforcement 30 x 40 x 1.5 mm
• Vertical PVC spacer Ø 22 x 3.0 mm
• Galvanised steel internal reinforcement Ø 14 x 1.5 mm
• Upright section 54 x 44 x 2.0 mm
• Galvanised steel internal reinforcement 50 x 40 x 2.0 mm
• Pallet of 10 pcs.
Available models
| Item | Panel H mm | Upright H tot. mm | kg per piece | kg per pallet |
|---|---|---|---|---|
| Panel with upright to be set in concrete | ||||
| RNC 105 xx | 1050 | 1250 | 24.60 | 246 |
| RNC 115 xx | 1150 | 1350 | 26.90 | 269 |
| RNC 125 xx | 1250 | 1450 | 29.20 | 292 |
| RNC 135 xx | 1350 | 1550 | 31.40 | 314 |
| Panel with upright and rod Ø 17 mm to be set in concrete | ||||
| RNP 105 xx | 1050 | 1200 | 24.10 | 241 |
| RNP 115xx | 1150 | 1300 | 26.40 | 264 |
| RNP 125 xx | 1250 | 1400 | 28.70 | 287 |
| RNP 135 xx | 1350 | 1500 | 30.90 | 309 |
| Panel with upright to be bolted on | ||||
| RNT 105 xx | 1050 | 1058 | 24.40 | 244 |
| RNT 115 xx | 1150 | 1158 | 26.70 | 267 |
| RNT 125 xx | 1250 | 1258 | 29.00 | 290 |
| RNT 135 xx | 1350 | 1358 | 31.20 | 312 |
