HP-T
Hot-dip galvanised or painted tubular post with stainless steel wire holders 2 holes base to be bolted on
Hot-dip galvanised or painted tubular post with stainless steel wire holders 2 holes base to be bolted on
• Supplied with aluminium cap
• Packs of 25 pieces
The posts to be bolted are divided into two categories.
The first category has a rectangular plate with two holes placed on the long side in line with the area being fenced. The maximum height for this series is 3 working metre.
The second category has a square plate with four holes and is better suited to supporting the weight of heavier fences. The four holes also allow plastic rings to be placed between the installation base and the post plate to insulate it or absorb vibrations from the road surface.
The maximum height for this series is 4.5 working metre.
The mainstays for posts to be bolted are all angled at 45°. There are two types of mainstay: the first has a longitudinal plate with one hole only while the second has a cross plate with two holes. The latter is better suited to very tall posts to be bolted in with “4-holes”.

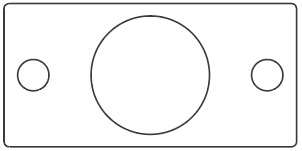

HP-T base120 x 60/90 x 10 mm - 2 holes ø 12 mm

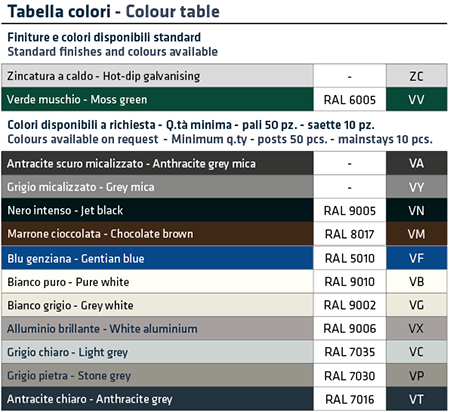

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height cm | Fairlead N. | For mesh H cm | Kg x piece | Pieces x pallet | kg per pallet |
|---|---|---|---|---|---|---|
| Palo Ø 33 mm - Spessore 2,0 mm | ||||||
| Post Ø 33 mm - Thickness 2.0 mm | ||||||
| HP3 065 T xx | 65 | 2 | 60 | 1.54 | 50 | 77 |
| HP3 085 T xx | 85 | 3 | 80 | 1.85 | 50 | 93 |
| HP3 095 T xx | 95 | 3 | 90 | 2.00 | 50 | 100 |
| HP3 105 T xx | 105 | 3 | 100 | 2.15 | 50 | 108 |
| HP3 125 T xx | 125 | 3 | 120 | 2.46 | 50 | 123 |
| HP3 130 T xx | 130 | 3 | 125 | 2.54 | 50 | 127 |
| HP3 155 T xx | 155 | 3 | 150 | 2.92 | 50 | 146 |
| HP3 180 T xx | 180 | 3 | 175 | 3.30 | 50 | 165 |
| HP3 185 T xx | 185 | 3 | 180 | 3.38 | 50 | 169 |
| HP3 205 T xx | 205 | 4 | 200 | 3.69 | 50 | 185 |
| HP3 230 T xx | 230 | 4 | 225 | 4.06 | 50 | 203 |
| HP3 255 T xx | 255 | 5 | 250 | 4.45 | 50 | 223 |
| Palo Ø 42 mm - Spessore 2,5 mm | ||||||
| Post Ø 42 mm - Thickness 2.5 mm | ||||||
| HP4 065 T xx | 65 | 2 | 60 | 2.14 | 50 | 107 |
| HP4 085 T xx | 85 | 3 | 80 | 2.63 | 50 | 132 |
| HP4 095 T xx | 95 | 3 | 90 | 2.88 | 50 | 144 |
| HP4 105 T xx | 105 | 3 | 100 | 3.12 | 50 | 156 |
| HP4 125 T xx | 125 | 3 | 120 | 3.61 | 50 | 181 |
| HP4 130 T xx | 130 | 3 | 125 | 3.73 | 50 | 187 |
| HP4 155 T xx | 155 | 3 | 150 | 4.35 | 50 | 218 |
| HP4 180 T xx | 180 | 3 | 175 | 4.96 | 50 | 248 |
| HP4 185 T xx | 185 | 3 | 180 | 5.08 | 50 | 254 |
| HP4 205 T xx | 205 | 4 | 200 | 5.57 | 50 | 279 |
| HP4 230 T xx | 230 | 4 | 225 | 6.18 | 50 | 309 |
| HP4 255 T xx | 255 | 5 | 250 | 6.80 | 50 | 340 |
| Palo Ø 48 mm - Spessore 2,5 mm | ||||||
| Post Ø 48 mm - Thickness 2.5 mm | ||||||
| HP5 065 T xx | 65 | 2 | 60 | 2.37 | 50 | 119 |
| HP5 085 T xx | 85 | 3 | 80 | 2.93 | 50 | 147 |
| HP5 095 T xx | 95 | 3 | 90 | 3.21 | 50 | 161 |
| HP5 105 T xx | 105 | 3 | 100 | 3.50 | 50 | 175 |
| HP5 125 T xx | 125 | 3 | 120 | 4.05 | 50 | 203 |
| HP5 130 T xx | 130 | 3 | 125 | 4.20 | 50 | 210 |
| HP5 155 T xx | 155 | 3 | 150 | 4.90 | 50 | 245 |
| HP5 180 T xx | 180 | 3 | 175 | 5.60 | 50 | 280 |
| HP5 185 T xx | 185 | 3 | 180 | 5.74 | 50 | 287 |
| HP5 205 T xx | 205 | 4 | 200 | 6.30 | 50 | 315 |
| HP5 230 T xx | 230 | 4 | 225 | 7.00 | 50 | 350 |
| HP5 255 T xx | 255 | 5 | 250 | 7.56 | 50 | 378 |
| HP5 280 T xx | 280 | 5 | 275 | 8.40 | 50 | 420 |
| HP5 305 T xx | 305 | 5 | 300 | 9.10 | 50 | 455 |
| Palo Ø 60 mm - Spessore 3,0 mm | ||||||
| Post Ø 60 mm - Thickness 3.0 mm | ||||||
| HP6 105 T xx | 105 | 3 | 100 | 4.98 | 50 | 249 |
| HP6 125 T xx | 125 | 3 | 120 | 5.82 | 50 | 291 |
| HP6 130 T xx | 130 | 3 | 125 | 6.03 | 50 | 302 |
| HP6 155 T xx | 155 | 3 | 150 | 7.08 | 50 | 354 |
| HP6 180 T xx | 180 | 3 | 175 | 8.14 | 50 | 407 |
| HP6 185 T xx | 185 | 3 | 180 | 8.35 | 50 | 418 |
| HP6 205 T xx | 205 | 4 | 200 | 9.20 | 50 | 460 |
| HP6 230 T xx | 230 | 4 | 225 | 10.25 | 50 | 513 |
| HP6 255 T xx | 255 | 5 | 250 | 11.10 | 50 | 555 |
| HP6 280 T xx | 280 | 5 | 275 | 12.36 | 50 | 618 |
| HP6 305 T xx | 305 | 5 | 300 | 13.41 | 50 | 671 |
