HP-T4
Hot-dip galvanised or painted tubular post with stainless steel wire 4 holes based to be bolted on
Description:
Hot-dip galvanised or painted tubular post with stainless steel wire 4 holes based to be bolted on
• Supplied with aluminium cap
• Packs of 25 pieces
HP-T4 Base
120 x 120 x 10 mm
4 holes ø 12 mm
mounted on posts from 55 cm in height

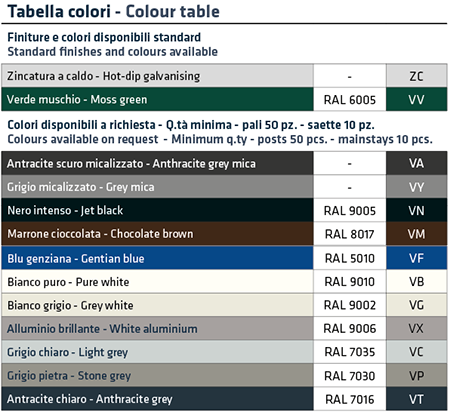

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height cm | Fairlead N. | For mesh H cm | Kg x piece | Pieces x pallet | kg per pallet |
|---|---|---|---|---|---|---|
| Post Ø 33 mm - Thickness 2.0 mm | ||||||
| HP3 065 T4 xx | 65 | 2 | 60 | 2.03 | 50 | 102 |
| HP3 085 T4 xx | 85 | 3 | 80 | 2.34 | 50 | 117 |
| HP3 095 T4 xx | 95 | 3 | 90 | 2.49 | 50 | 125 |
| HP3 105 T4 xx | 105 | 3 | 100 | 2.64 | 50 | 132 |
| HP3 125 T4 xx | 125 | 3 | 120 | 2.95 | 50 | 148 |
| HP3 130 T4 xx | 130 | 3 | 125 | 3.02 | 50 | 151 |
| HP3 155 T4 xx | 155 | 3 | 150 | 3.41 | 50 | 171 |
| HP3 180 T4 xx | 180 | 3 | 175 | 3.79 | 50 | 190 |
| HP3 185 T4 xx | 185 | 3 | 180 | 3.87 | 50 | 194 |
| HP3 205 T4 xx | 205 | 4 | 200 | 4.17 | 50 | 209 |
| HP3 230 T4 xx | 230 | 4 | 225 | 4.55 | 50 | 228 |
| HP3 255 T4 xx | 255 | 5 | 250 | 4.94 | 50 | 247 |
| Post Ø 42 mm - Thickness 2.5 mm | ||||||
| HP4 065 T4 xx | 65 | 2 | 60 | 2.62 | 50 | 131 |
| HP4 085 T4 xx | 85 | 3 | 80 | 3.11 | 50 | 156 |
| HP4 095 T4 xx | 95 | 3 | 90 | 3.35 | 50 | 168 |
| HP4 105 T4 xx | 105 | 3 | 100 | 3.59 | 50 | 180 |
| HP4 125 T4 xx | 125 | 3 | 120 | 4.08 | 50 | 204 |
| HP4 130 T4 xx | 130 | 3 | 125 | 4.20 | 50 | 210 |
| HP4 155 T4 xx | 155 | 3 | 150 | 4.81 | 50 | 241 |
| HP4 180 T4 xx | 180 | 3 | 175 | 5.42 | 50 | 271 |
| HP4 185 T4 xx | 185 | 3 | 180 | 5.54 | 50 | 277 |
| HP4 205 T4 xx | 205 | 4 | 200 | 6.03 | 50 | 302 |
| HP4 230 T4 xx | 230 | 4 | 225 | 6.64 | 50 | 332 |
| HP4 255 T4 xx | 255 | 5 | 250 | 7.25 | 50 | 363 |
| HP4 280 T4 xx | 280 | 5 | 275 | 7.85 | 50 | 393 |
| HP4 305 T4 xx | 305 | 5 | 300 | 8.46 | 50 | 423 |
| Post Ø 48 mm - Thickness 2.5 mm | ||||||
| HP5 065 T4 xx | 65 | 2 | 60 | 2.86 | 50 | 143 |
| HP5 085 T4 xx | 85 | 3 | 80 | 3.42 | 50 | 171 |
| HP5 095 T4 xx | 95 | 3 | 90 | 3.70 | 50 | 185 |
| HP5 105 T4 xx | 105 | 3 | 100 | 3.99 | 50 | 200 |
| HP5 125 T4 xx | 125 | 3 | 120 | 4.54 | 50 | 227 |
| HP5 130 T4 xx | 130 | 3 | 125 | 4.68 | 50 | 234 |
| HP5 155 T4 xx | 155 | 3 | 150 | 5.39 | 50 | 270 |
| HP5 180 T4 xx | 180 | 3 | 175 | 6.09 | 50 | 305 |
| HP5 185 T4 xx | 185 | 3 | 180 | 6.23 | 50 | 312 |
| HP5 205 T4 xx | 205 | 4 | 200 | 6.79 | 50 | 340 |
| HP5 230 T4 xx | 230 | 4 | 225 | 7.49 | 50 | 375 |
| HP5 255 T4 xx | 255 | 5 | 250 | 8.05 | 50 | 403 |
| HP5 280 T4 xx | 280 | 5 | 275 | 8.90 | 50 | 445 |
| HP5 305 T4 xx | 305 | 5 | 300 | 9.59 | 50 | 480 |
| HP5 405 T4 xx | 405 | 6 | 300 + Nylon | 12.40 | 50 | 620 |
| HP5 455 T4 xx | 455 | 6 | 300 + Nylon | 13.80 | 50 | 690 |
| Post Ø 60 mm - Thickness 3.0 mm | ||||||
| HP6 105 T4 xx | 105 | 3 | 100 | 5.46 | 50 | 273 |
| HP6 125 T4 xx | 125 | 3 | 120 | 6.31 | 50 | 316 |
| HP6 130 T4 xx | 130 | 3 | 125 | 6.52 | 50 | 326 |
| HP6 155 T4 xx | 155 | 3 | 150 | 7.57 | 50 | 379 |
| HP6 180 T4 xx | 180 | 3 | 175 | 8.28 | 50 | 414 |
| HP6 185 T4 xx | 185 | 3 | 180 | 8.34 | 50 | 417 |
| HP6 205 T4 xx | 205 | 4 | 200 | 9.68 | 50 | 484 |
| HP6 230 T4 xx | 230 | 4 | 225 | 10.74 | 50 | 537 |
| HP6 255 T4 xx | 255 | 5 | 250 | 11.58 | 50 | 579 |
| HP6 280 T4 xx | 280 | 5 | 275 | 12.84 | 50 | 642 |
| HP6 305 T4 xx | 305 | 5 | 300 | 13.90 | 50 | 695 |
| HP6 405 T4 xx | 405 | 6 | 300 + Nylon | 18.12 | 50 | 906 |
| HP6 455 T4 xx | 455 | 6 | 300 + Nylon | 20.22 | 50 | 1011 |
