HS-F
Hot-dip galvanised or painted tubular post with rod to be set in concrete
Description:
Hot-dip galvanised or painted tubular post with rod to be set in concrete
• Supplied with 45° angle aluminium pointed cap
• Packs of 25 pieces

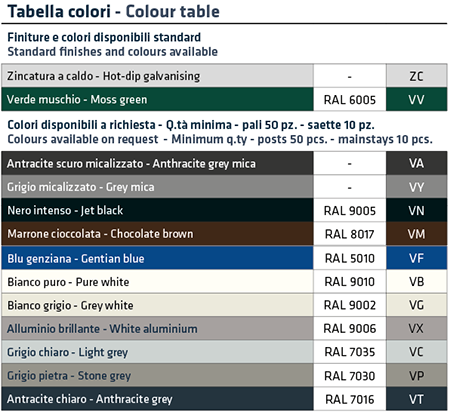

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height cm | For post H cm | For mesh H cm | Kg x piece | Pieces x pallet | kg per pallet |
|---|---|---|---|---|---|---|
| Mainstay Ø 33 mm - Thickness 2.0 mm - Rod Ø 12 mm x 15 cm | ||||||
| HS3 080 F xx | 80 | 75-85 | 50-60 | 1.57 | 100 | 157 |
| HS3 110 F xx | 110 | 105-115 | 80-90 | 2.03 | 100 | 203 |
| HS3 140 F xx | 140 | 130 | 90-100 | 2.49 | 100 | 249 |
| HS3 170 F xx | 170 | 150-155 | 120-125 | 2.95 | 100 | 295 |
| HS3 200 F xx | 200 | 180 | 150 | 3.41 | 100 | 341 |
| HS3 250 F xx | 250 | 210-215 | 175-180 | 4.17 | 50 | 209 |
| HS3 280 F xx | 280 | 235 | 200 | 4.63 | 50 | 232 |
| Mainstay Ø 42 mm - Thickness 2,5 mm - Rod Ø 12 mm x 15 cm | ||||||
| HS4 080 F xx | 80 | 75-85 | 50-60 | 2.30 | 100 | 230 |
| HS4 110 F xx | 110 | 105-115 | 80-90 | 3.03 | 100 | 303 |
| HS4 140 F xx | 140 | 130 | 90-100 | 3.76 | 100 | 376 |
| HS4 170 F xx | 170 | 150-155 | 120-125 | 4.49 | 100 | 449 |
| HS4 200 F xx | 200 | 180 | 150 | 5.22 | 100 | 522 |
| HS4 250 F xx | 250 | 210-215 | 175-180 | 6.44 | 50 | 322 |
| HS4 280 F xx | 280 | 235 | 200 | 7.17 | 50 | 358 |
| Mainstay Ø 48 mm - Thickness 2.5 mm - Rod Ø 12 mm x 15 cm | ||||||
| HS5 080 F xx | 80 | 75-85 | 50-60 | 2.59 | 100 | 259 |
| HS5 110 F xx | 110 | 105-115 | 80-90 | 3.44 | 100 | 344 |
| HS5 140 F xx | 140 | 130 | 90-100 | 4.28 | 100 | 428 |
| HS5 170 F xx | 170 | 150-155 | 120-125 | 5.12 | 100 | 512 |
| HS5 200 F xx | 200 | 180 | 150 | 5.96 | 100 | 596 |
| HS5 250 F xx | 250 | 210-215 | 175-180 | 7.36 | 50 | 368 |
| HS5 280 F xx | 280 | 235 | 200 | 8.20 | 50 | 410 |
| HS5 300 F xx | 300 | 250 | 225 | 8.77 | 50 | 438 |
| HS5 350 F xx | 350 | ≥ 255 | 250 | 10.17 | 50 | 508 |
| Mainstay Ø 60 mm - Thickness 3.0 mm - Rod Ø 12 mm x 15 cm | ||||||
| HS6 080 F xx | 80 | 75-85 | 50-60 | 3.72 | 100 | 372 |
| HS6 110 F xx | 110 | 105-115 | 80-90 | 4.99 | 100 | 499 |
| HS6 140 F xx | 140 | 130 | 90-100 | 6.25 | 100 | 625 |
| HS6 170 F xx | 170 | 150-155 | 120-125 | 7.52 | 100 | 752 |
| HS6 200 F xx | 200 | 180 | 150 | 8.78 | 100 | 878 |
| HS6 250 F xx | 250 | 210-215 | 175-180 | 10.89 | 50 | 545 |
| HS6 280 F xx | 280 | 235 | 200 | 12.16 | 50 | 608 |
| HS6 300 F xx | 300 | 250 | 225 | 13.00 | 50 | 650 |
| HS6 350 F xx | 350 | ≥ 255 | 250 | 15.11 | 50 | 756 |
