Catalogs | Fences | Fences in spot-welded and chain link rolls | Tubular posts with extension arm for fencing rolls - EXPORT series | Hot-dip galvanised or painted tubular post with double extension arm and stainless steel wire holders to be set in concrete
HP-C20
Hot-dip galvanised or painted tubular post with double extension arm and stainless steel wire holders to be set in concrete
Description:
Hot-dip galvanised or painted tubular post with double extension arm and stainless steel wire holders to be set in concrete
• Supplied with aluminium cap

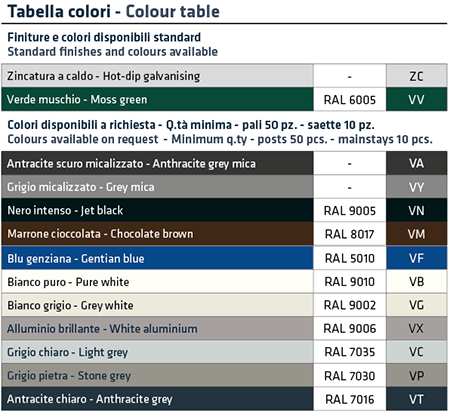

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
Available models
| Item | Height cm | Fairlead N. | For mesh H cm | Kg x piece | Pieces x pallet | kg per pallet |
|---|---|---|---|---|---|---|
| Post Ø 48 mm - Thickness 2.5 mm | ||||||
| HP5 335 C2O xx | 235+50+50 | 4+3+3 | 200 | 10.85 | 30 | 326 |
| HP5 365 C2O xx | 265+50+50 | 4+3+3 | 225 | 11.70 | 30 | 351 |
| HP5 390 C2O xx | 290+50+50 | 5+3+3 | 250 | 12.54 | 30 | 376 |
| Post Ø 60 mm - Thickness 3.0 mm | ||||||
| HP6 335 C2O xx | 235+50+50 | 4+3+3 | 200 | 15.53 | 30 | 466 |
| HP6 365 C2O xx | 265+50+50 | 4+3+3 | 225 | 16.79 | 30 | 504 |
| HP6 390 C2O xx | 290+50+50 | 5+3+3 | 250 | 17.99 | 30 | 540 |
