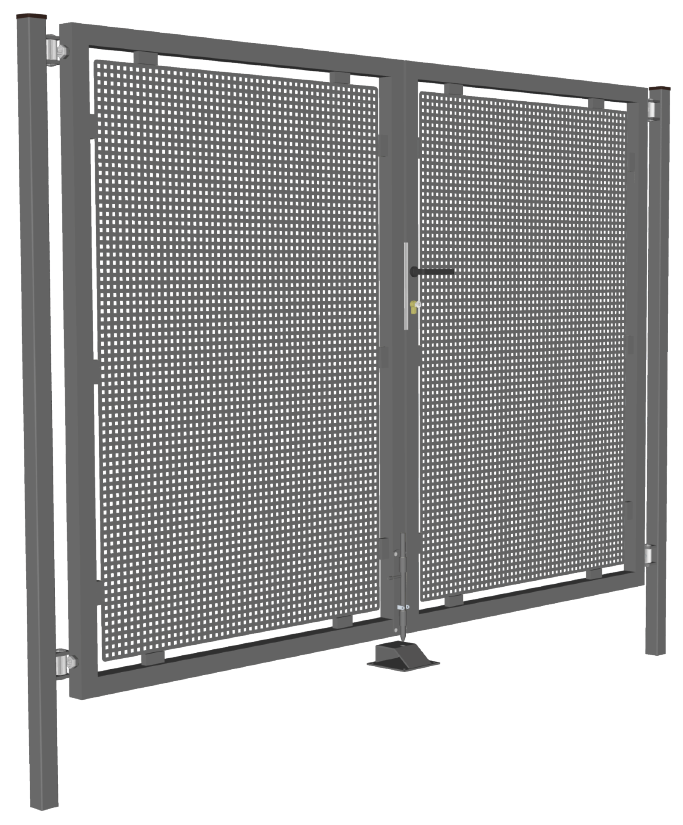

QuadraFix series double-leaf driveway gate
description:

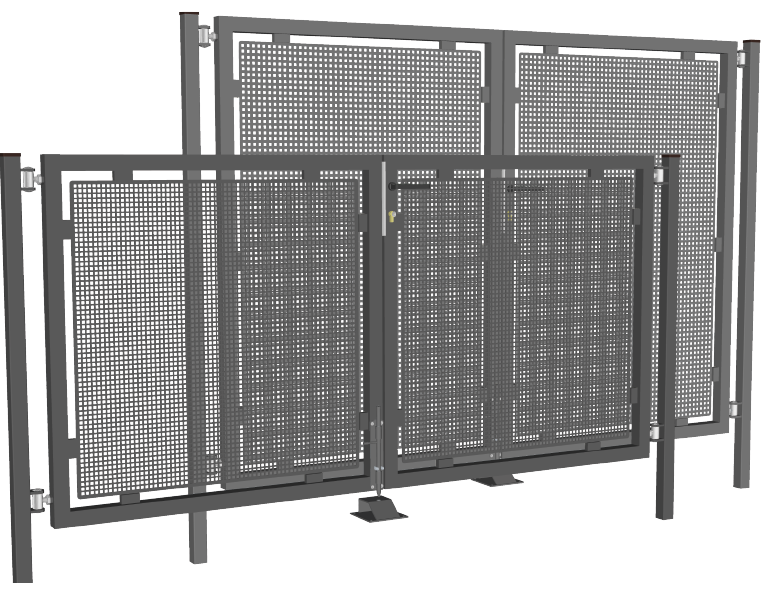

QuadraFix series double-leaf driveway gate with widths of 2.6 - 3.9 metre
• Square-section gate leaf tube 50 x 50 x 2.0 mm- cut at 45°
• Square-section upright tube 80 x 80 x 2.0 mm
• Perforated sheet metal infill, holes 10 x 10 mm
• Reversible hanging for RH or LH opening
• Adjustable hinges +/- 30 mm

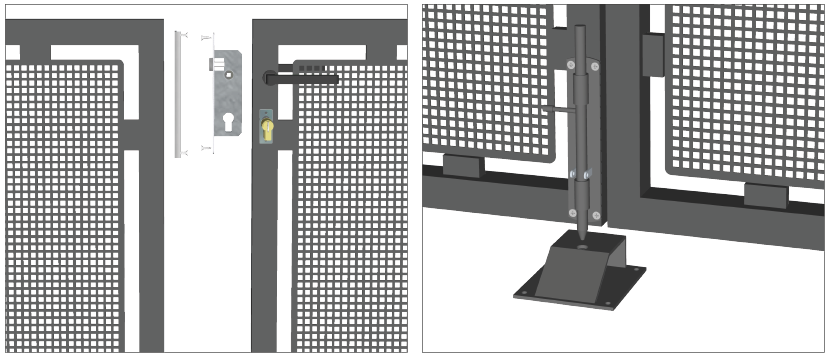

• Supplied with gatekeeper socket and relevant drop bolt
• The gate is supplied with a black plastic handle
• The distance of the gate leaf from the ground is 100 mm
• Epoxy powder coating on the base

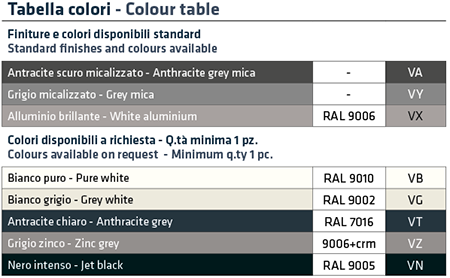

To order the product in the required finish or paint, replace the “xx” in the code with the colour suffix as shown in the table.
